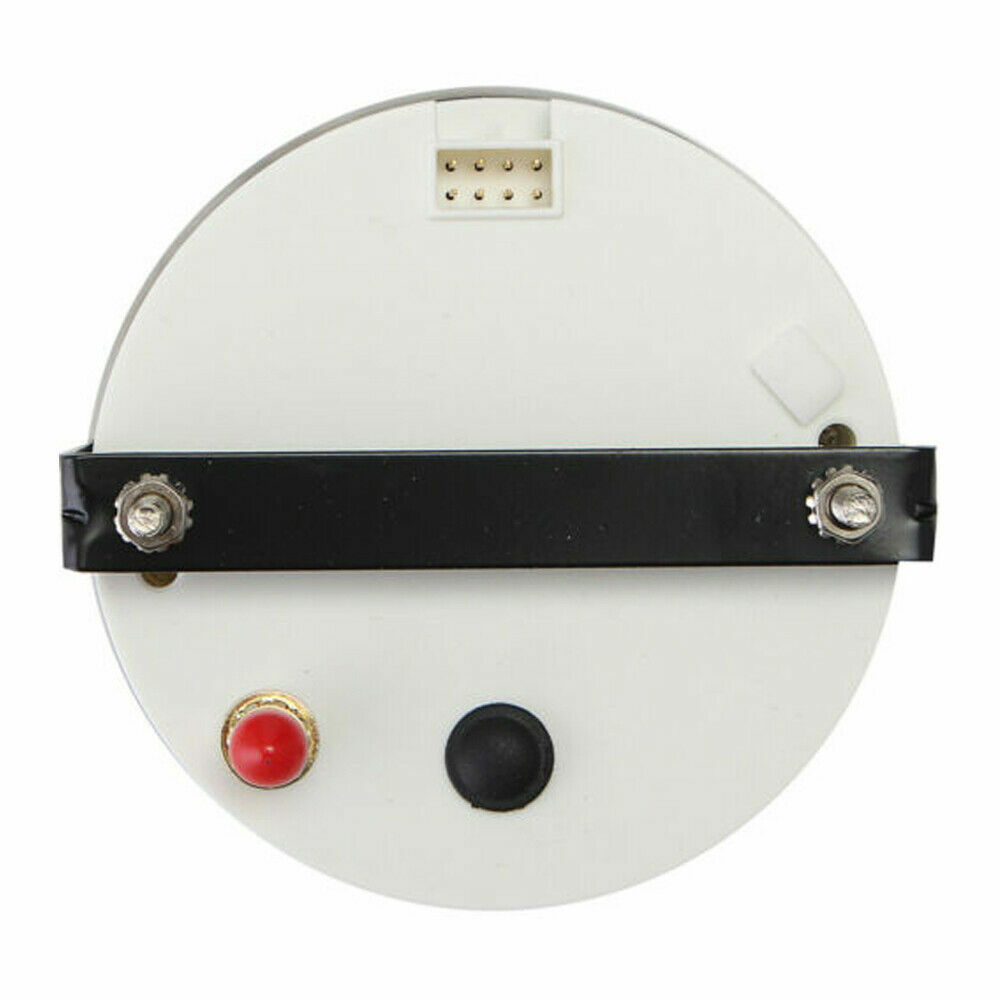

85mm 4 in1 Gauge with Sender Fuel Gauge(73-10 ohms) Water Temp Oil Pressure Volt

USD 80.75 USD

SKU: zxoliJt8

Brand: Does not paply

GTIN: Does not apply

Condition: New

Tags: 0-10Bar 0.325KG 12V/24V 4 functions in 1 gauge 6 Months China Chromed Digital Does not paply Plastic, Steel Red Red Led Volt Meter Volt Meter Gauge 8-16V White Yes

Categories: Interior Parts & Accessories

Specifications

Oil Pressure	0-10Bar
Working Voltage	12V/24V
Color	White
Material	Plastic, Steel
Feature 4	Volt Meter Gauge 8-16V
Brand	Does not paply
Type	Volt Meter
Display Type	Digital
Backlight Color	Red LED
Manufacturer Warranty	6 Months
Needle Color	Red
Country/Region Of Manufacture	China
Style	Chromed
Item Weight	0.325KG
Vintage Part	Yes

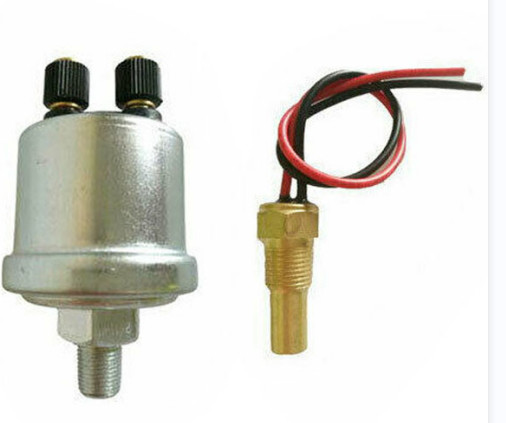

85mm 4 in1 Gauge with Senders Fuel Gauge(73-10 ohms) Water Temp Oil Pressure Voltmeter RED LED Features Engine oil pressure: 0~10bar Engine temperature: 100-250°F Battery voltage: 8-16V Fuel level: 73-10 ohms Empty-Full Senders Oil pressure sender:input 0-10bar, output:10-184 ohms resistance. Isolated to ground. Water Temp sender:range 100 - 240F (40-120C) , output 287.4 - 22.4 ohms. Sender Connection: Oil pressure sender:G--Sensor signal WK--Alarm(0.8bar) Shell--Ground(-) Water Temp sender: Red--Sensor signal Black--Ground(-) Package Included: 1 x 85mm 4 in 1 Multifunctional Gauge 1 x Cable 1 x Installation Instruction 1 x Water Temp Sender 1 xOil Pressure Sender.
